- General Information
- Manufacturer
- Legrand Group
- Manufacturer Website Address
- http://www.legrand.us
- Brand Name
- Middle Atlantic
- Product Series
- PDS
- Product Type
- PDU

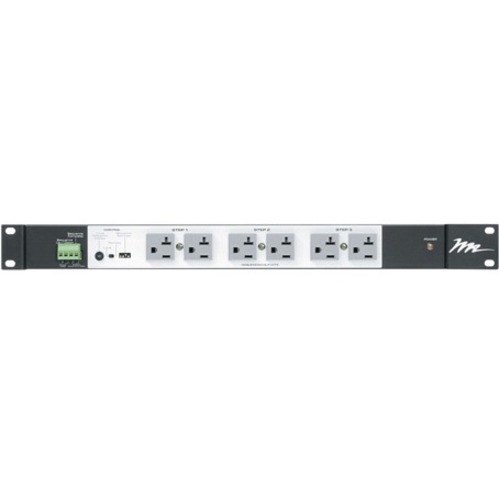

The Middle Atlantic PDS-1620R-NS is an excellent power distribution unit that provides built-in sequencing functions, which saves space and makes it easier to manage power distribution in your setup. This unit provides 6-step sequencing to 6 rear outlets, allowing you to turn on and off your devices in a specific order to avoid overloading your circuit. Additionally, the PDS-1620R-NS allows daisy-chaining up to 3 sequencers to act together, providing even more control over your power distribution. The intervals are adjustable, making it easy to customize your setup to your specific needs. The PDS-1620R also features remote triggering and notifications, allowing you to control it from a distance and receive updates on its status. The power distribution unit comes equipped with a 9ft SignalSAFE power cord, which minimizes potential interference from AC magnetic fields from other equipment in the rack. Overall, the Middle Atlantic PDS-1620R is an excellent choice for those who want to save space and customize their power distribution setup.
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Plug/Connector Type
- NEMA 5-20P
- Receptacle Type
- NEMA L5-20R
- Receptacle Detail
- 16 x NEMA L5-20R
- Power Description
- Input Voltage
- 120 V AC
- Input Current
- 20 A
- Physical Characteristics
- Mounting Orientation
- Horizontal/Vertical
- Mount Type
- Rack-mountable
- Rack Height
- 1U
- Height
- 1.8"
- Width
- 19"
- Depth
- 4.5"
- Miscellaneous
- Package Contents
- Multi-mount Rackmount Power, 16 Outlet, 20A, 3-Step Sequencing
- 9' 12/3 SignalSAFE™ Power Cord
- Environmentally Friendly
- Yes
- Environmental Certification
- GREENGUARD
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
