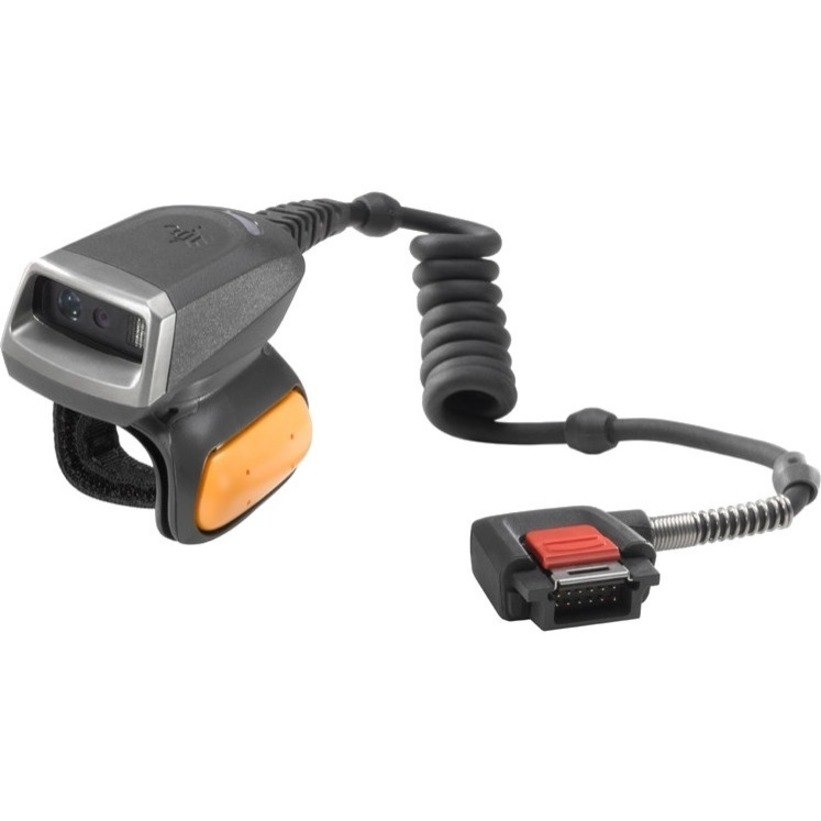

Zebra RS5000 1D/2D Corded Ring Scanner

  • Part: 30266089
  • Model: RS5000-LCFSWR
$1,036.00

Availability

In Stock

  • General Information
    • Manufacturer
    • Zebra Technologies Corporation
    • Manufacturer Website Address
    • http://www.zebra.com
    • Brand Name
    • Zebra
    • Product Type
    • Barcode Scanner

MAXIMISE WORKER PRODUCTIVITY AND THE VALUE OF YOUR ZEBRA WEARABLE COMPUTERS WITH THE RS5000

The RS5000 ring scanner is designed for challenging warehouse and manufacturing environments. Designed for subzero environments, it can be used in your warehouse aisles and in the freezer. It can withstand a 4 ft./1.2 m drop across the entire operating temperature range - a must for freezer use. Even after 1,000 consecutive bumps, the RS5000 delivers reliable operation. And with its IP65 sealing, this rugged scanner is dust-proof and spray-proof.

  • Technical Information
    • Connectivity Technology
    • Cable
    • Scanning Capability
    • 1D
    • 2D
    • Barcode Symbology Supported
    • 1D:
      • Code 39
      • Code 128
      • Code 93
      • Codebar/NW7
      • Code 11
      • MSI
      • UPC/EAN
      • I 2of 5
      • Korean 3 of 5
      • GSI DataBar
      • Base 32 (Italian Pharma)
      2D:
      • PDF417
      • Micro PDF417
      • Composite Codes
      • TLC-39
      • Aztec
      • DataMatrix
      • MaxiCode
      • QR Code
      • Micro QR
      • Chinese Sensible (Han Xin)
      • Postal Codes
    • Scan Engine Model
    • SE4710
    • Image Sensor Type
    • Imager
    • Scan Rate
    • 116 scan/s
    • Scan Pattern
    • Omni-directional
    • Scanner Range
    • Standard Range
    • Scanning Distance
    • 25"
    • Cable Type Included
    • USB
    • Field of View (Horizontal)
    • 42°
    • Field of View (Vertical)
    • 28°
    • Reading Angle (Skew)
    • 60°
    • Reading Angle (Pitch)
    • 60°
    • Reading Angle (Roll)
    • 360°
    • Maximum Ambient Light
    • 96900 lux
    • Drop Specification
    • Multiple 4 ft. /1.2 m drops to concrete over the operating temperature range

    • Minimum Element Resolution (Code 39)
    • 5 mil
    • Maximum Element Resolution (Code 39)
    • 20 mil
    • Maximum Element Resolution (DataMatrix)
    • 10 mil
    • Maximum Element Resolution (PDF417)
    • 5 mil
  • Physical Characteristics
    • Form Factor
    • Wearable
    • Rugged
    • Yes
    • Color Family
    • Gray
    • Product Color
    • Dark Gray
    • Width
    • 1.3"
    • Depth
    • 1.1"
    • Length
    • 2"
    • Weight (Approximate)
    • 2.68 oz
  • Miscellaneous
    • Ingress Protection (IP) Rating
    • IP65
    • Application/Usage
    • Industrial
    • Manufacturing
    • Retail
    • Transportation
    • Warehouse
